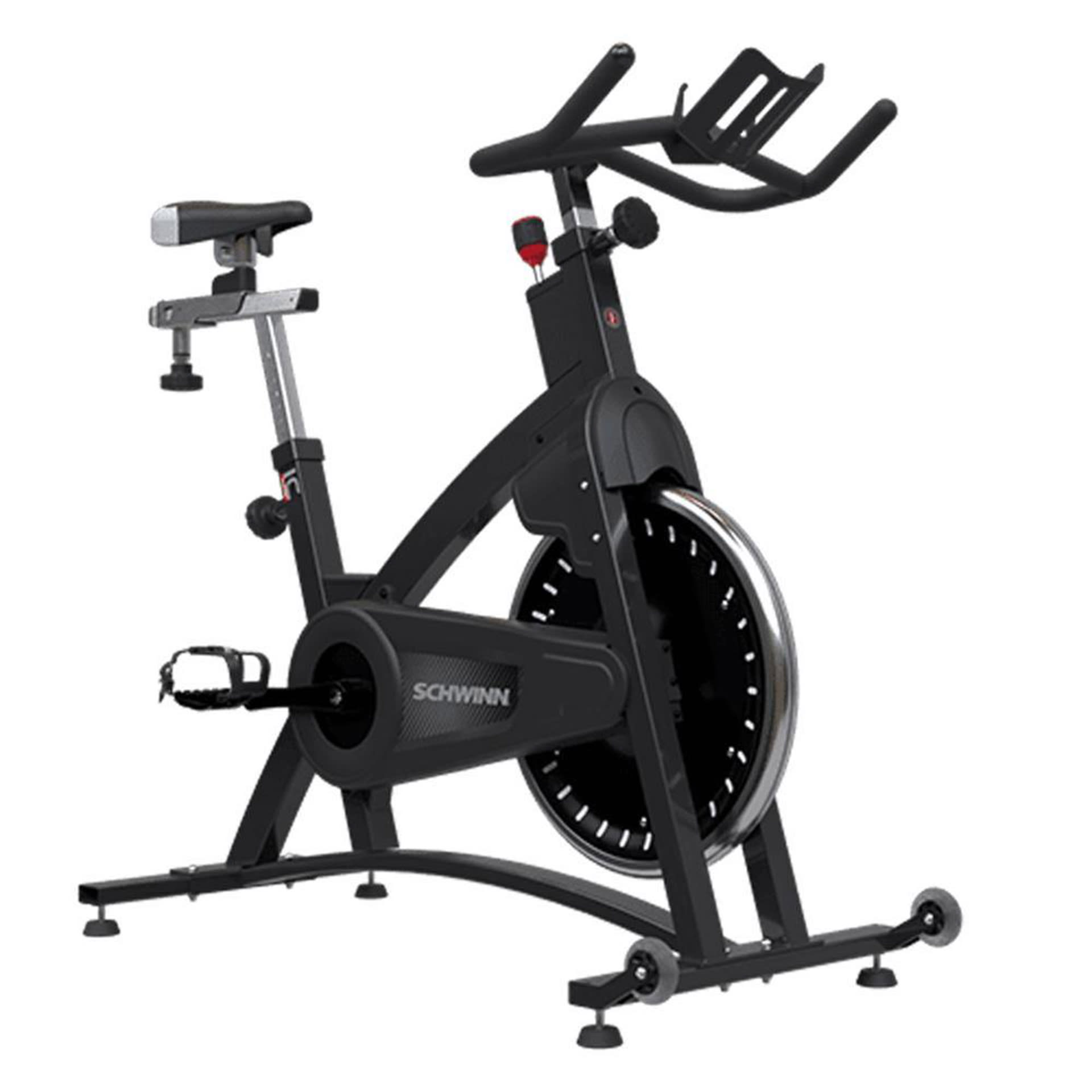

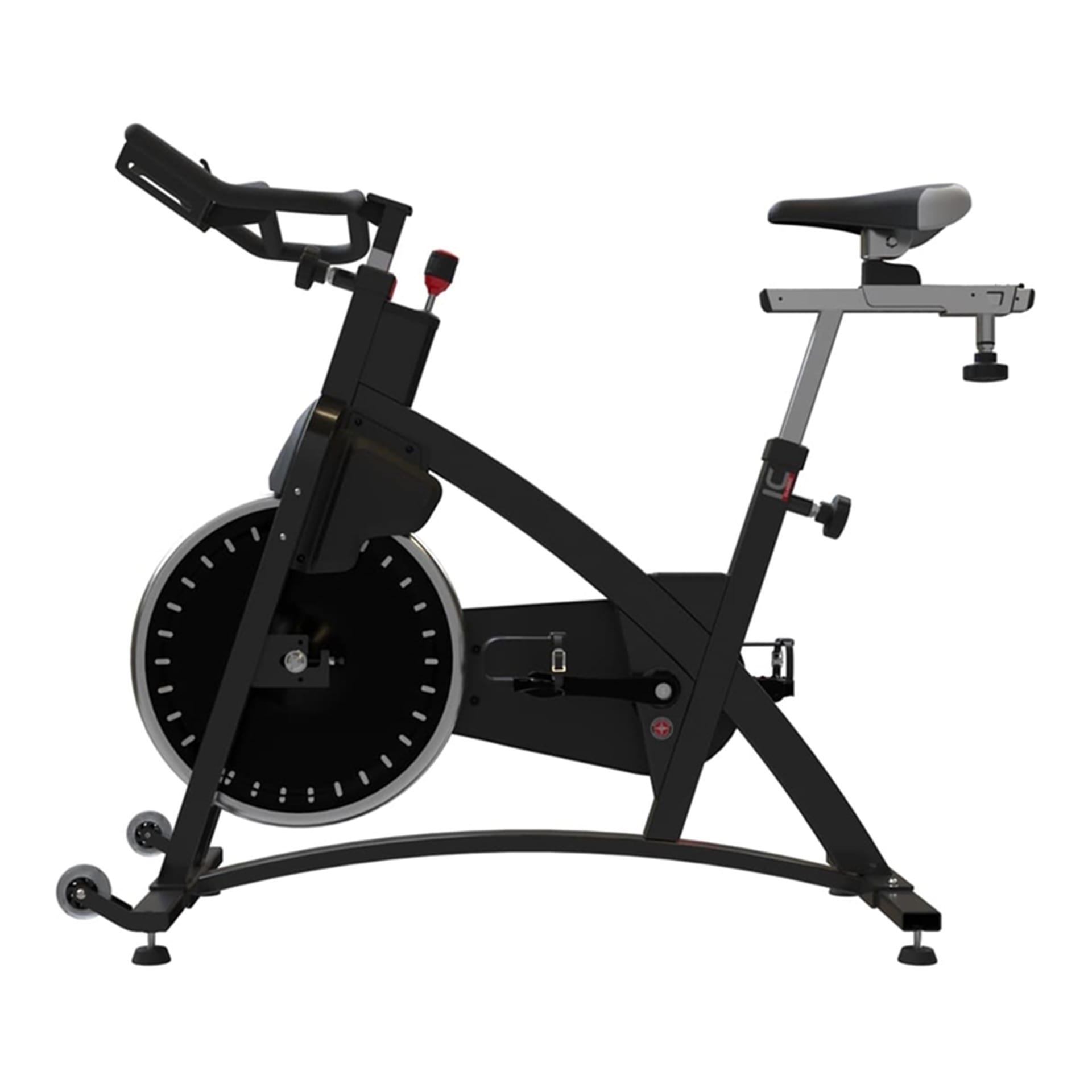

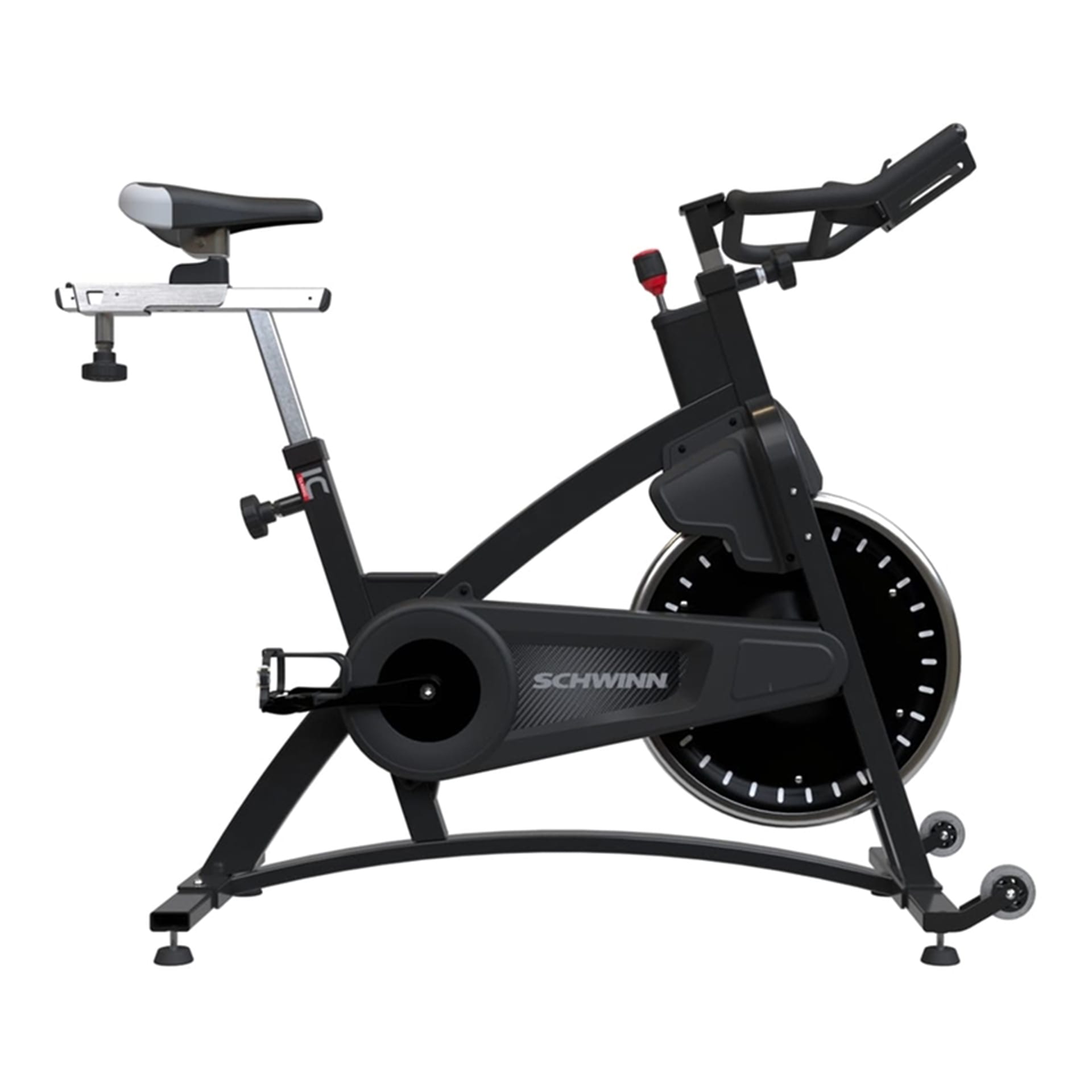

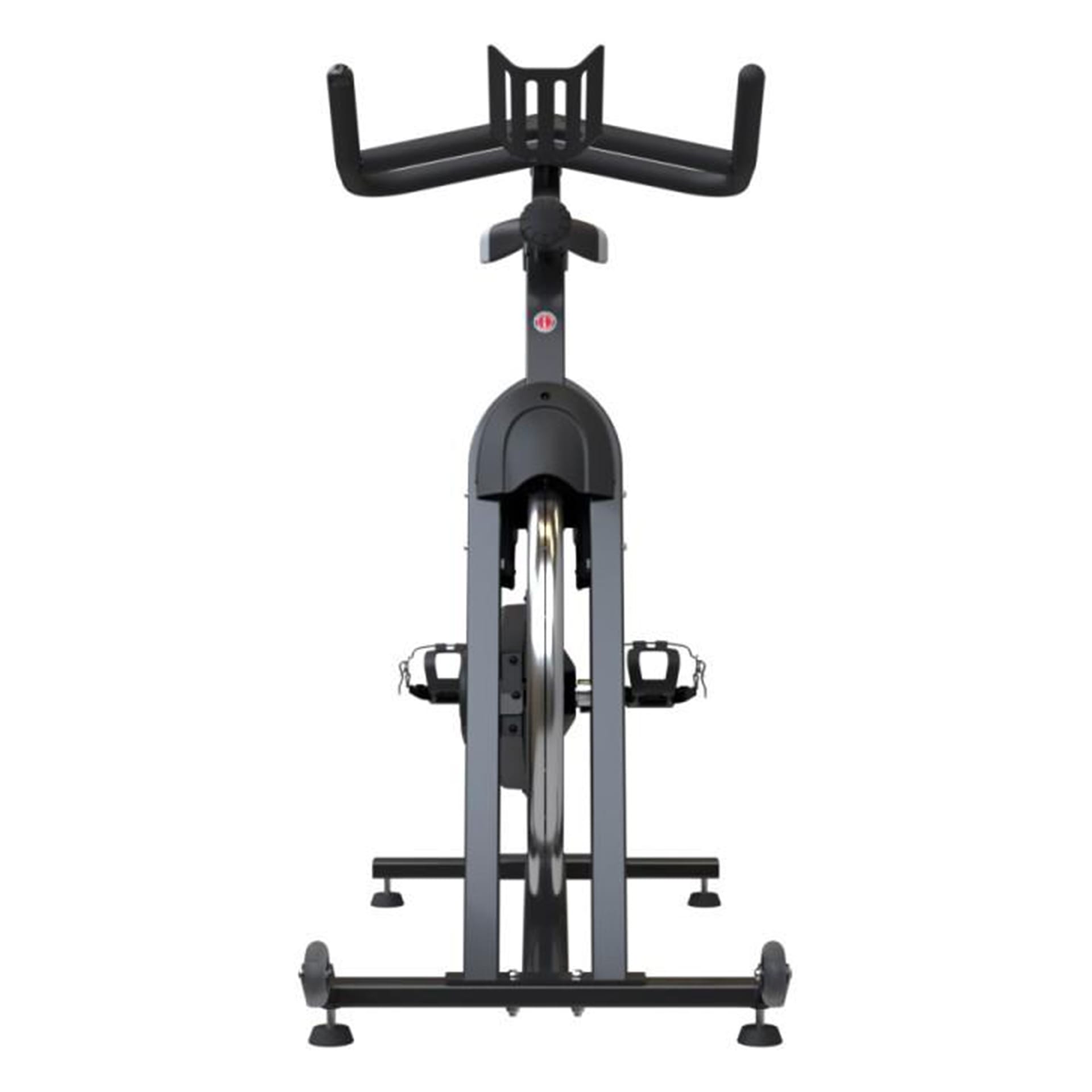

• Model - 9-7420
• Proven, traditional drive train of the IC Pro 20
• Sturdy steel frame and a heavy perimeter weighted flywheel
• Traditional chain drive and direct pressure brake
• Compatible with the Schwinn Triple Link pedal upgrade
• Classic handlebar with water bottle holder and smartphone tablet mount
• Dual-pad brake technology
• Chain drive using forged steel crank
• ISIS oversized bottom bracket
• Direct Pressure Brake Resistance
• Max User Weight : 350 lb (159 kg)

SPECIFICATIONS

• Product Weight : 114 lb (52 kg)
• Shipping Weight : 126 lb
• Product Footprint : (LXWXH) 43.5 in x 20 in x 46 in (110 cm x 51 cm x 117 cm)
• Max Product Length : 43.5 in (110 cm)
• Shipping Dimensions : (LXWXH) 44 in x 11 in x 38 in
• Frame Material : Steel
• Frame Finish : E- Coated & Powder Coated
• Frame Color : Black
• Drive System : Chain
• Resistance System : Direct Pressure
• Q-Factor : 168 mm
• Handle Bar : IC
• Saddle : SC saddle
• Fore/Aft Adjustment System : Pop-Pin, seat only
• Height Adjustment System : Pop-Pin
• Flywheel : Heavy Perimeter- Weighted
• Pedals : Athletic shoe cage, 9/16 threaded
• User Height Range : 4 ft 11 in to 6 ft 8 in (150 cm to 203 cm)
• Max User Weight : 350 lb (159 kg)
